Recurring water hygiene issues
Biofilm and slime can form inside water supply equipment, cleaning systems, pipes, and tanks.
For Equipment Manufacturers & System Developers
Electrolytic ozone water generation, built into your products and systems
Astozein develops compact electrolytic ozone water generator modules for integration into products, equipment, and water systems — for manufacturers and engineering teams working on biofilm control, slime, odor, and water hygiene challenges.
Tap water based
Designed to generate ozone water where the system uses water.
Compact modules
MARUS for compact embedded equipment. RAIDEN for fixed systems.
System integration
For OEM products, water infrastructure, and hygiene-focused applications.
Why On-Site Generation
Ozone water is most effective when it is generated as part of the system
Biofilm, slime, and odor often come back because the problem is inside the water path. Ozone water can help address recurring hygiene issues when it is built into the system where the problem occurs, not applied after the fact.
Limitations of chemical-only methods
Chemical-only approaches, including hypochlorous acid-based methods, can be labor-intensive and may not address the internal source of recurring problems.
Need for system integration
On-site generation makes ozone water available exactly where the application requires it.
Products
Ozone Water Generator Modules: MARUS & RAIDEN
MARUS and RAIDEN address different integration needs — from compact OEM components for embedded devices to higher-output modules for fixed water systems and infrastructure.
Compact · OEM Component · Portable
For compact equipment

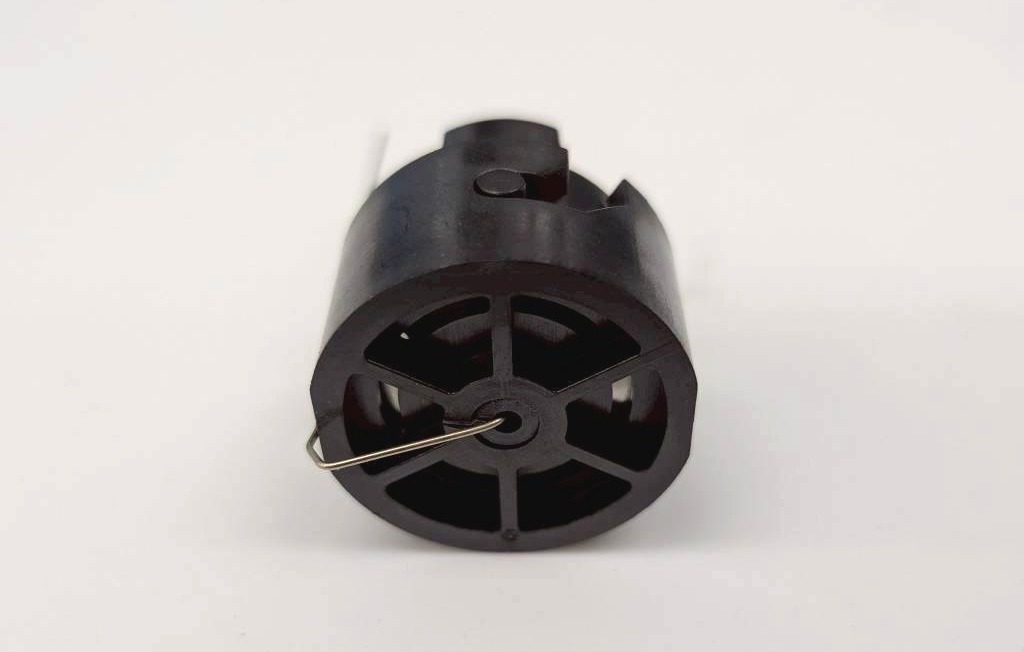

MARUS
Compact ozone water generation cell for OEM products
An industrial high-concentration electrolytic ozone water cell for small-flow applications, built in a compact form factor for space-constrained products. Designed for portable devices, embedded equipment, new product development, and manufacturers adding ozone water functionality to existing product lines.
| Ozone water generation | 0.5-15mg/L |
|---|---|
| Power consumption | Constant current 1.2A, 8-18V |
| Connection diameter | - |
| Water hardness limit | TDS=400PPM |
| Continuous operating life* | 300 hours |
| Size | 20 x 20 x 35mm |
| Supported flow rate | 0.1-2.0L/min |
*Reference value based on provided specifications. Actual performance depends on operating conditions.
Fixed · High-Output · Infrastructure
For fixed water systems

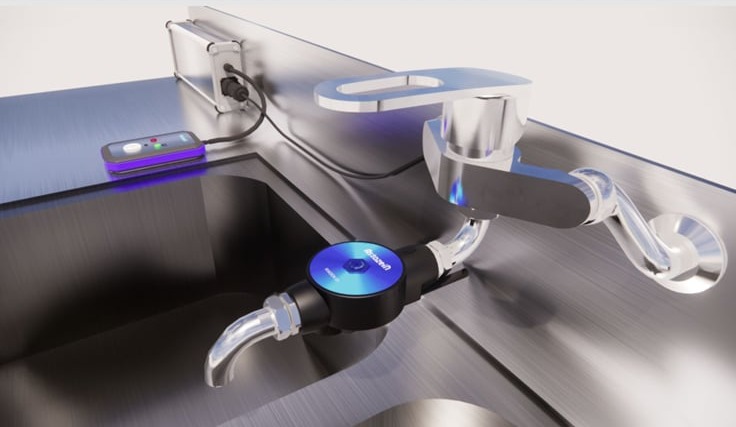

RAIDEN
Large-flow ozone water generation cell for fixed systems
An industrial high-concentration electrolytic ozone water cell for larger-flow applications. RAIDEN has been refined through water circulation system development and is designed for cartridge replacement, continuous operation, and resource-efficient maintenance.
| Ozone water generation | 1.0-5.0mg/L |
|---|---|
| Power consumption | Constant current 10A, 8-12V |
| Connection diameter | G3/8 |
| Water hardness limit | TDS=200PPM |
| Continuous operating life* | 500 hours |
| Size | 78 x 78 x 44mm |
| Supported flow rate | 3.0-15L/min |
*Reference value based on provided specifications. Actual performance depends on operating conditions.
Utility Map
Where Astozein modules fit in
Astozein modules can be integrated into products, facilities, and systems where water hygiene is part of the engineering challenge.
Embedded Equipment
Water dispensers, handwashing equipment, robotic cleaners, dishwashers, food washing machines, air conditioner water-management applications, and compact pressure washer products.
Facility Water Systems
Kitchens, sinks, backyards, tanks, toilets, water reuse systems, wastewater-related systems, and building water hygiene.
Primary Industry & Food
Livestock water hygiene, aquaculture circulation, food washing, and food quality management testing.
Special Environments
Emergency water management, public water points, remote facilities, air conditioner hygiene applications, and other settings with special constraints.
Field Validation
Real-world validation areas
Astozein works with external organizations to apply ozone water generation in real environments, including water circulation systems, food hygiene applications, and public water facilities.

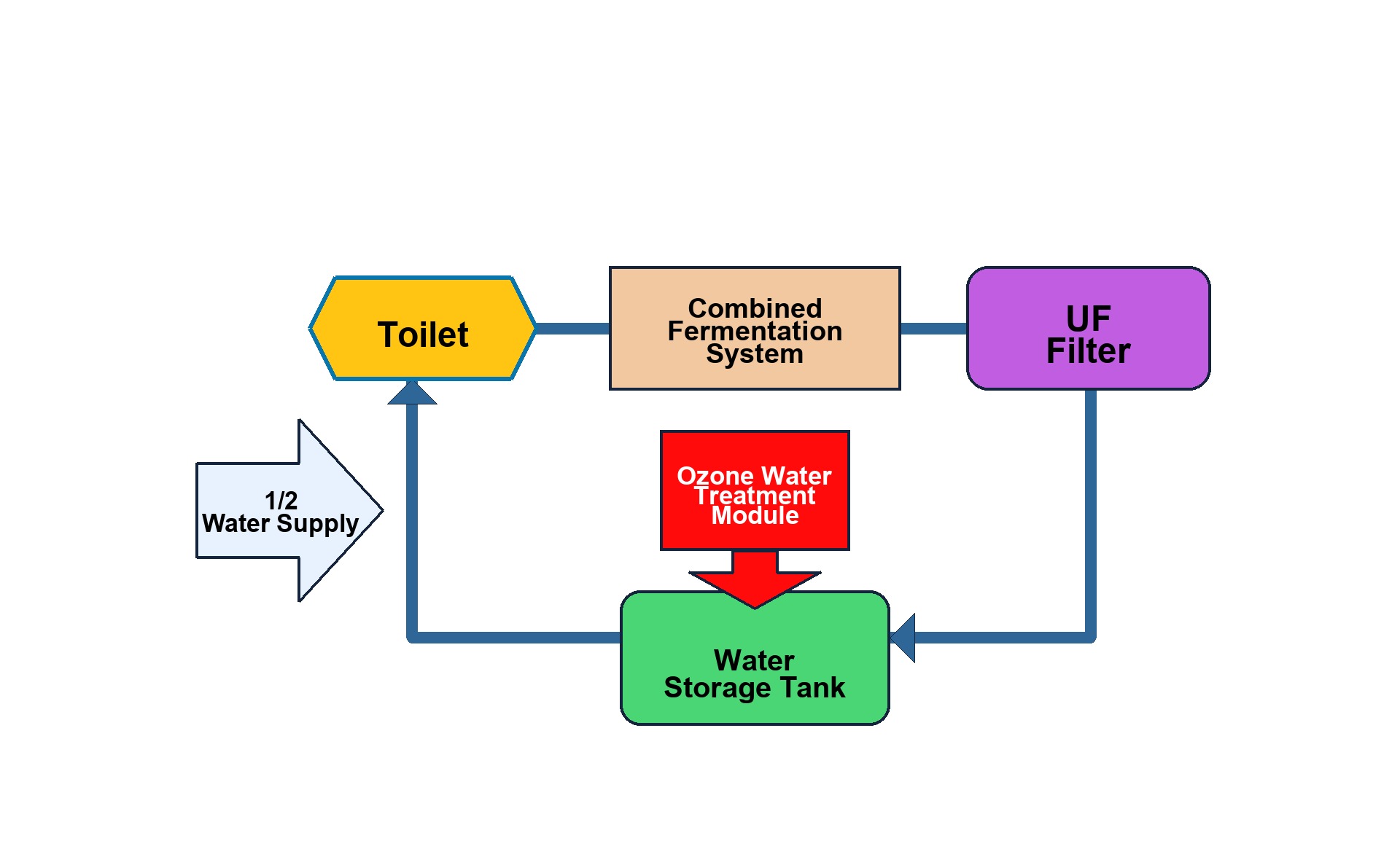

Tokyu SOIL water circulation
Astozein participates in a field pilot program for water reuse, exploring how ozone water generation can support water quality, odor, and hygiene-related challenges in water infrastructure.
Food hygiene and quality testing
Field testing is underway for food washing applications involving meat, seafood, and produce, with a focus on hygiene process development.

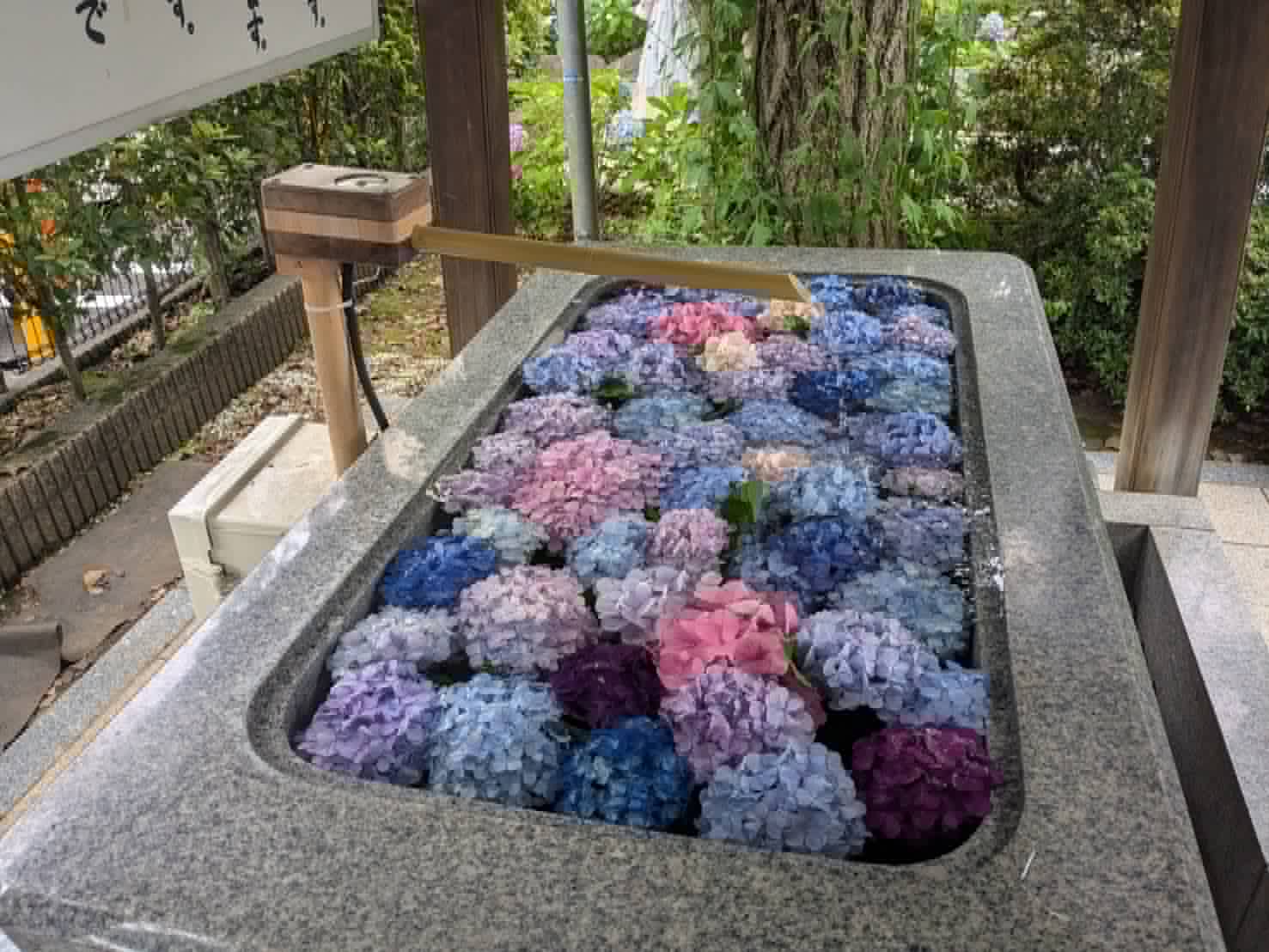

Hygiene in public water facilities
Water at public facilities and outdoor installations requires reliable hygiene management without chemical additives. Astozein is conducting field testing in this type of environment.
FAQ
Questions from product and system developers
For engineering teams searching for an ozone water generator, the key question is not only the device itself, but how it can be integrated into the water path.
Can ozone water help address biofilm challenges?
Ozone water can support biofilm control when it is generated inside the water path as part of a system. Astozein modules are designed for applications where recurring biofilm, slime, and odor are issues.
What products can use ozone water generator modules?
Applications include water dispensers, handwashing equipment, cleaning robots, air conditioner water-management applications, food washing equipment, pressure washers, facility water systems, livestock water hygiene, and wastewater-related systems.
What is the difference between MARUS and RAIDEN?
MARUS is designed for compact embedded equipment, portable devices, and small-flow applications. RAIDEN is designed for fixed systems, larger-flow use cases, cartridge-based maintenance, and water infrastructure integration.
What type of water is required for the modules?
Astozein modules are designed for use with tap water within specified hardness and TDS ranges. Requirements depend on the module and operating environment.
Can the modules be integrated into existing water systems?
Yes. Astozein modules are designed to be built into products, equipment, and water systems. The appropriate configuration depends on water flow, installation space, power supply, and the target application. Contact us to discuss the best approach for your system.
What is the expected lifespan and maintenance requirement of the modules?
Expected operating life depends on water quality and usage patterns. Astozein provides module-specific specifications upon request. Contact us for details relevant to your target application.
System Integration
From module selection to system integration
SHIFT HUB coordinates with Astozein to help manufacturers and system developers identify the right module, consider integration requirements, and validate performance in the field. The goal is to move from reactive maintenance to preventive hygiene infrastructure, helping maintain stable operating conditions over time.
Identify the right module
We help determine whether MARUS or RAIDEN fits the target product, water system, or PoC environment.
Integrate into your product or system
We support integration into faucets, tanks, cleaning equipment, water circulation systems, and custom product architectures.
Validate in the field
Initial trials, operating feedback, and practical adjustments with manufacturers and system developers.
About / Contact
Japanese ozone water generation technology for OEM integration
Astozein is a Japan-based developer of compact electrolytic ozone water generation modules for product integration, hygiene infrastructure, and new water hygiene applications.
Astozein Co., Ltd.
Founded in Tokyo with R&D based in Fukuoka, Astozein develops proprietary compact electrolytic ozone water generation technology for product and system integration.
Tokyo, Japan
Compact electrolytic ozone water generation modules
Products: MARUS / RAIDEN
Discuss OEM integration
For equipment manufacturers and system developers exploring OEM integration, water hygiene system design, or field PoC, contact SHIFT HUB as the international business coordination contact.
